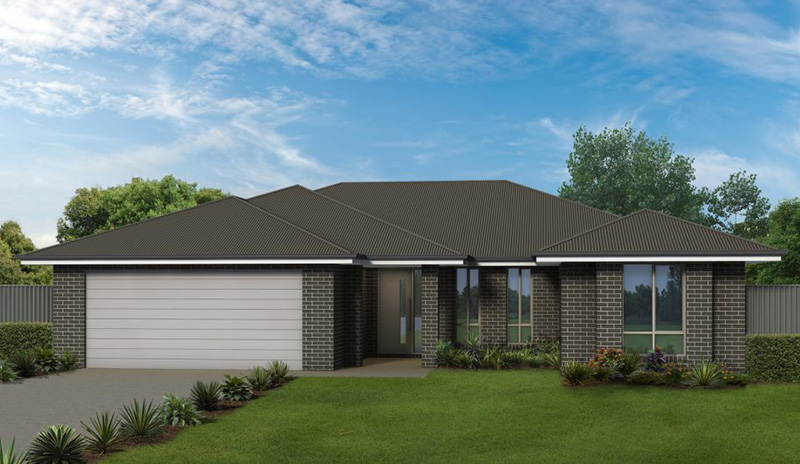

Bayview
View Floorplans
4
2
2
The Bayview is available in three- or four-bedroom configurations, all floor plan options feature a formal entry foyer that flows through to the open plan living, galley style kitchen and meals area. The Bayview 26 and 30 also includes a separate lounge room and study at the front of the home.
A departure from the all too common squeeze
Download the brochure and browse through the floor plans below to see which option is right for you. If you have any questions, get in touch using the enquire now button.
23
Bed: 3
Bath: 2
Garage: 2
Dimensions
Total Area: 212.76m²
Garage Area: 38.10m²
Living Area: 156.11m²
Home Width: 14.34m
Home Length: 17.34m
26
Bed: 3
Bath: 2
Garage: 2
Dimensions
Total Area: 243.79m²
Garage Area: 38.10m²
Living Area: 182.50m²
Home Width: 14.34m
Home Length: 20.25m
30
Bed: 4
Bath: 2
Garage: 2
Dimensions
Total Area: 286.48m²
Garage Area: 38.10m²
Living Area: 225.57m²
Home Width: 14.34m
Home Length: 25.14m
